Control-pad in 3DO

ec2-3-21-104-109.us-east-2.compute.amazonaws.com , 18701st

1996/01/10 UPDATED

Pin Assign(D-SUB9P)

PIN	NAME	DESCRIPTION
1	GND
2	Vcc(5V)
3	Audio.1(1v-pp)	Head phone(o)
4	Audio.2(1v-pp)	Head phone(o)
5	Vcc(5V)
6	P/S	Shift/Load(o)
7	CLK(125KHz)	Shift Clock(o)
8	GND
9	DATA	Data(i)

Data format

Data table(shift direction:right, PushDown = Hi)

Data position	d7	d6	d5	d4	d3	d2	d1	d0
First	B	A	Left	Right	Up	Down	0	0
Second	1	0	0	L	R	X	P	C

Timing chart

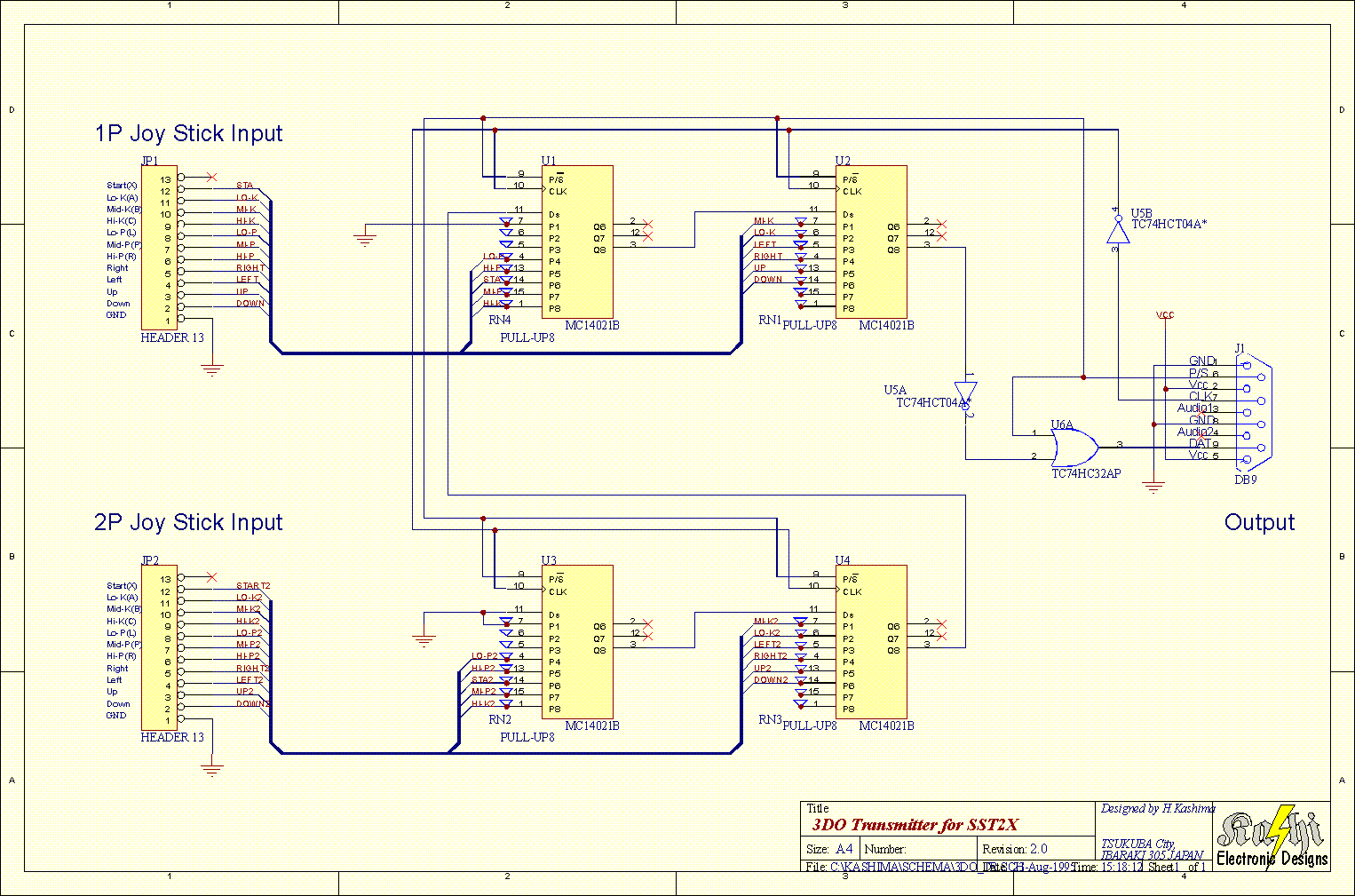

Example schematic chart

SuperStreetFighter2X(TESTED!)

---
