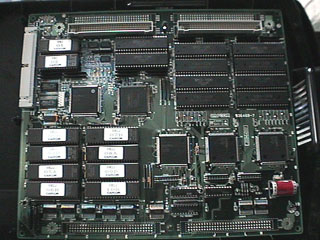

inside view of CP-System2 ROM Cartridge(Vampire Savior)
|
216.73.216.159
,
50069th
|
1998/05/21 UPDATED
|
please click anywhere, you can viewing zoom images.
Jumper Setting
| name | #JP | description |
|---|
| ROM#01 A16 select | 1 | A16 -> #2pin |
| 2 | GND -> #2pin |
| ROM#01 /OE select | 3 | A16 -> #24pin |
| 4 | GND -> #24pin |
| ROM#02 A16 select | 5 | A16 -> #2pin |
| 6 | GND -> #2pin |
| ROM#02 /OE select | 8 | A16 -> #24pin |
| 9 | GND -> #24pin |
| ROM#11 /BYTE select | 10 | VCC -> #32pin |
| 11 | A20 -> #32pin |
| ROM#12 /BYTE select | 12 | VCC -> #32pin |
| 13 | A20 -> #32pin |
| ROM#13 /BYTE select | 14 | A20 -> #32pin |
| 15 | VCC -> #32pin |
| ROM#14 /BYTE select | 16 | A20 -> #32pin |
| 17 | VCC -> #32pin |
| ROM#15 /BYTE select | 18 | A20 -> #32pin |
| 19 | VCC -> #32pin |
| ROM#16 /BYTE select | 20 | A20 -> #32pin |
| 21 | VCC -> #32pin |
| ROM#17 /BYTE select | 22 | A20 -> #32pin |
| 23 | VCC -> #32pin |
| ROM#18 /BYTE select | 24 | A20 -> #32pin |
| 25 | VCC -> #32pin |
| ROM#19 /BYTE select | 26 | A20 -> #32pin |
| 27 | VCC -> #32pin |
| ROM#20 /BYTE select | 28 | A20 -> #32pin |
| 29 | VCC -> #32pin |
